Yoke Buttons & Kits
YOKE BUTTONS & KITS

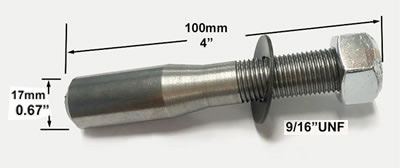

AW10138 Cotter Bolt
= Walterscheid 65.12.06
Suits Walterscheid 1 3/8" yokes & clutches

AW10134 Cotter Bolt
= Walterscheid 65.12.08
Suits Walterscheid 1 3/4" yokes & clutches

B3728 Cotter Bolt for 1 3/4" Splined Bare-Co Clutch
B4728 Cotter Bolt for BareCo 8" (200mm) 1 3/8" Splined Clutch
B4727 Cotter Bolt for BareCo 6" (150mm) 1 3/8" Splined Clutch

"A" replaces 13mm / 13.8mm / 14mm
B1090 exclusive BARE-Co design
Replaces HARDY SPICER - Early BARE-Co -
Early BYPY - LUPPY

"A" = 15.8mm
AB134 suits large size yokes (8-9 series) with button as illustrated (Old BARE-Co / BYPY types)

Shielded type yokes

Shielded type yokes

AB121 suits late type BYPY - BARE-Co shafts
1 3/8" (35mm) Spline Diameter Shielded or unshielded yokes

A134 Suits Bare-Co shielded yokes
1 3/4" (44mm) Spline Diameter


AB120
suits old type (non shielded) BYPY & Bare-Co yokes 1 3/4" (44mm) Spline Diameter


AW138 suits WALTERSCHEID early type

=AGRASET 101-14.8MM

AW134 Suits large 1 3/4" spline - early type yokes

=AGRASET 102-18MM


AW121 suits WALTERSCHEID - BARE-Co late type

=AGRASET 101-14.8MM

AW120 suits large 1 3/4" spline yokes

=AGRASET 102-18MM
